Fiber Laser welding of metals
Welding metal with light
Today, welding is an innovative assembly technique that is used in all areas. While the technique itself is widespread, some of its processes are as yet not so well known and underused. Laser welding falls into that category this in spite of its reputation as a complex process, it offers unparalleled advantages, in terms of speed, technique and costs.
What is wobble laser welding?
Trepanning Fiber Laser Head
Standard laser welding heads are designed to focus a collimated laser beam to ONE required spot size, keeping the beam path static. This standard configuration limits each setup to ONE specific application.
Our Wobble heads, on the other hand, incorporate scanning mirror technology inside a our weld head. By moving the beam with internal mirrors or rotating lenses, the focal spot is no longer static, and can be dynamically adjusted by changing the shape, amplitude, and frequency.
Wobble welding
=
Laser Stir Welding (LSW)
=
Trepanning Laser Welding
WOBBLE - Fiber Laser Welding
Handheld fiber laser welding machine
FAST, ECONOMICAL and SAFE hand welding with a fiber laser light beam
A Handheld Fiber Laser Welding Machine is a new type high-power, high-end continuous welding tool which adopts a high-quality fiber laser source to produce a fiber optic light beam. After transmission processing, the light is focused on the workpiece to achieve continuous welding. It avoids the two thresholds of thermal strain and post-treatment, and is environmentally friendly and pollution-free, greatly improving the joint strength and quality of welding.
Replacing the trasditional arc welding with a hand-held fiber laser welding machine will not only facilitates the welding of molds, advertising characters, kitchen utensils, doors and windows, etc., but also makes laser welding possible in outdoor operations, which indicates that this traditional welding of electric welding, argon arc welding, etc. will soon be replaced by our wobble laser welding.

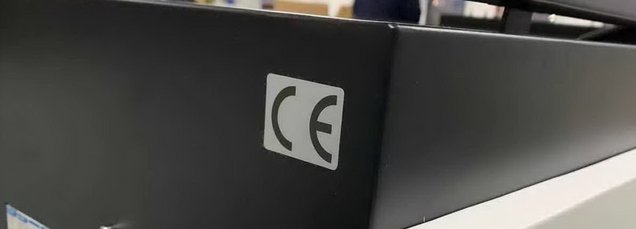

WOBBLE-3 ® Series: Full CE Certified
Laser Beam Welding Vs Laser Beam wobble Welding (or Laser beam stir welding)
Laser Beam Welding (LBW) is a material-joining technique that applies laser radiation to melt the base material and create the welding joint. Laser beam welding process is related to other traditional welding methods, such as electron beam welding (EBW), tungsten plasma arc welding (PAW), or inert gas tungsten arc welding (TIG).
Laser beam welding applies a high power industrial laser to create a narrow and deep melt pool between the parts to be welded. Laser is a highly concentrated heat source that can be easily automated and installed on industrial welding cells or mounted in a handheld gun like our wobble-3, providing high welding speeds for many industrial applications.
Nevertheless, factors such as the laser beam quality or the processed materials have a great influence on the resulting geometry, microstructure, and residual stress distribution. Therefore, final results are directly dependent on the process input parameters, which means that process parameters must be carefully selected for achieving the desired quality.
Laser Stir Welding (LSW) - (LWW Laser Wobble Welding) utilizes some form of beam manipulation to oscillate the keyhole or vapor cavity within a larger molten pool. It requires a relatively high rate of manipulation, which may be represented by circular motion or some other pattern. The manipulation of the beam, and its corresponding oscillation of the vapor cavity within the molten pool, is utilized in conjunction with motion used for the welding path.
The wobble method produces a superior weld by greatly reducing imperfections, increasing consistency, reducing material cost and providing more tolerance for process variables.
The welds produced using the laser stir welding (LSW) process, in general, exhibited a wider fusion zone than the welds produced without beam manipulation.
WOBBLE-3 ® Series
The killer of electric welding and argon arc welding
Handheld Fiber Laser welding offers a fast, economical and contact-free alternative for welding a wide variety of metals in virtually every industry. Whether you require, high processing speed, complex weld geometries or multi-layer joints, our Wobble-3 provides unique solutions for a diverse range of welding applications.
WOBBLE-3: We offer best of both worlds in ONE machine!
Two Classes Of Fiber Laser Welding For Different Product Design Needs In ONE Machine
New: Wobble-3Plus
NOW AVAILABLE
WOBBLE-3-Plus: We offer the best of three worlds in ONE machine!
Two Classes Of Fiber Laser Welding with adjustable wobbling diameter and a fiber laser cutting function in ONE Machine
Wobble-3 Handheld fiber laser Welder
Probably the best portable fiber laser welder in the world
Welding fume is a known carcinogen that can lead to lung cancer, according to the International Association for Research on Cancer (IARC).
Safety and Health
No words needed here!
Where do you want to work?
Where does your team want to work?
Our Wobble fiber laser welder gives you back the POLE position!

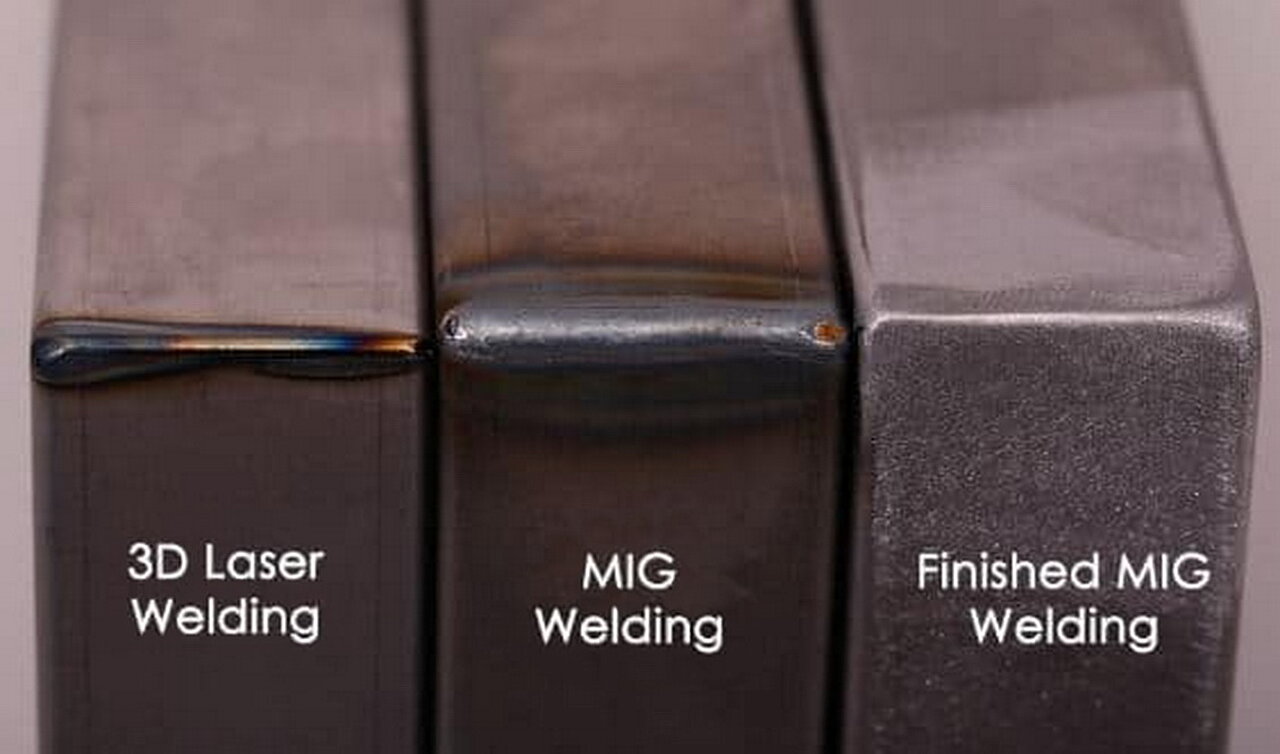

Comparison Welding: We beat them ALL
Comparison welding | Traditional welding | Laser welding | Wobble-3 laser welding |
|---|---|---|---|
| Heat input to the workpiece | Very high | Low | Very Low |
| Deformation of the workpiece, undercut | Big | Small | Very Small |
| Bond strength to base metal | General | Good | Very good |
| Follow up treatment | Polishing | Rarely need polishing | No need or rarely need polishing |
| Welding speed | General | More than 2 times arc welding | More than 2 times arc welding |
| Applicable material | Stainless Steel, Carbon steel, Galvanized sheet | Stainless Steel, Carbon steel, Galvanized sheet | Stainless Steel, Carbon steel, Galvanized sheet,... |
| Consumables | More consumables | Less consumables | Less consumables |
| Operation difficulty | Complicated | General | Simple |
| Operator safety | Unsafety | Safety | Safety is VERY High |
| Environmental protection impact | Not environmentally friendly | Environmentally friendly | Environmentally friendly |
| Welding fault tolerance | Good | Bad | VERY Good |
| Wobble/Swing welding | No | No | Yes |
| Spot width adjustable | No | No | Yes |
| Welding quality comparison | Bad | General | Very Good |
Benefits and advantages of fiber laser welding
Above all, the use of laser welding for metal parts improves productivity by reducing the time spent on welding and straightening the welded parts, and allows greater freedom in the designing of parts (simpler assemblies). Laser welding also helps make savings by reducing production costs and the materials consumed by the welding process. This welding method also has an effect on the quality of the assembly by offering mechanical strength that is at least equal to that of the base material, and by reducing the part deformation rate. Laser welding is also an excellent solution for joining subassemblies of dissimilar parts or treated parts (carbonitrided, case hardened etc.)
Benefits
- Welding productivity can increase by up to 800 %
- Reproducible process
- Reduction or even elimination of the time for straightening welded pieces
- Overall reduction of production costs
- Mechanical resistance at least equivalent to that of the base metal
- Reduction of welding consumables
- Great freedom in the designing of parts
- Fume and smoke drastically reduced
- Few splatters and flames
- Drastic reduction of post processing (cleaning, grinding,..)
Advantages
- Welding of dissimilar materials (steel to cast iron, stainless steel to Inconel etc.)
- Welding of precious materials
- Welding close to delicate components
- Welding time is reduced to a tenth
- Reduced deformation of parts
- Welding of parts with limited accessibility
- Process that can be automated
- Assembly with no filler metal
